ECU Engine Sim

This app simulates an OBD-|| bluetooth adapter connected to a car's ECU

Version 1.3.0

This app converts an Android device (phone or tablet) become a car (virtual) with an OBDII bluetooth adapter connected

This is convenient and cost-effective solution for android OBDII software developing and testing

Hardware:

Use 2 android devices (they are bluetooth paired), the one runs this app (ECU) and the other runs an android OBDII app for testing

Using this app you don't need a real car, stay indoor and do all testing before doing with a real car

The ECU Engine Simulation can affirm is running stable and reliable

This application has been tested with following android OBD-II apps:

* Code Reader Pro

* Torque Pro

* DashCommand

* ELMScanToyota

The testing result is very good

Note: some android OBD-II apps used the bluetooth threshold detection can not connect to the simulation device, because the threshold of a real ELM adapter is different from the threshold of BLE on android device

The ECU Engine Simulation can also work well with command line on android terminal apps

The ECU Engine Simulation works like a data server, so it waits (listen) for data request (AT or OBD-II commands) from external tester, then processing and responds to the request

The ECU Engine Simulation emulates OBD-II standard: ISO 15765-4 CAN 11/500Kb

The app can process most AT commands, but the following AT commands are usually used with the ISO 15765-4 CAN standard:

* ATZ, ATWS, ATSP0, AT@1, ATI, ATH0, ATH1, ATE0, ATE1, ATDP, ATRV, ATDPn, ATSPn, ATTPn, ATCAF0, ATCAF1, ATSP6, ATAT0

OBD-II commands (service mode and PIDs) supported by this app

1. Live data PIDs:

01 00, 01 01, 01 04, 01 05, 01 0A, 01 0C, 01 0D, 01 0E, 01 10, 01 11, 01 03, 01 04, 01 05, 01 21,

01 33, 01 46, 01 5C, 01 5E, 01 6A, 01 67

2. Vehile information:

09 00 - request supported PIDs

09 02 - request VIN number

09 04 - request calibration number

3. DTC trouble codes

03 - request stored codes

07 - request pending codes

0A - request permanent codes

04 - request clearing trouble codes and relevant stored data

4. Freeze frame data - frame #0

02 00 00 - request supported PIDs

02 02 00 - request DTC that cause freeze frame data to store

02 XX 00 - where XX are PIDs to request other freeze frame data

Usage:

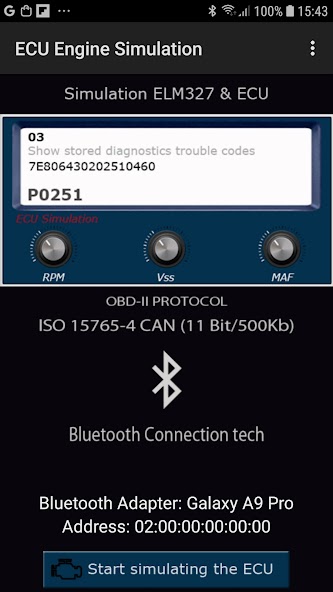

After starting the application, you need to tap the button "Start simulating the ECU" to start the ECU simulation process, the data screen appears

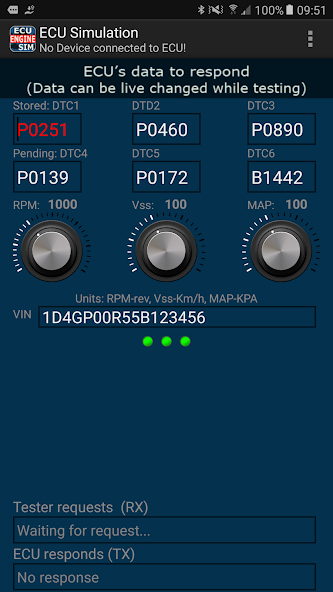

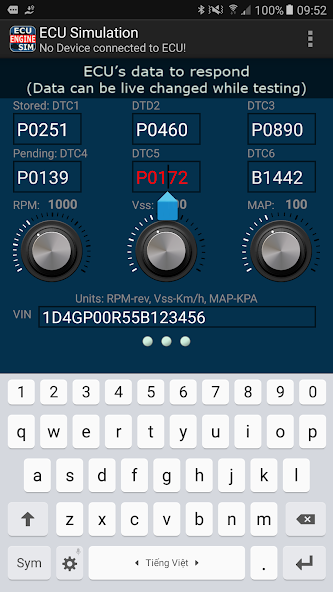

On the data screen you can live change some data that are visible on the data screen for the testing purpose

All other invisible data will be returned with fixed values

On the starting screen there are 2 information about the simulation bluetooth OBD-II adapter

* Adapter name: the name of built-in bluetooth device of the phone (tablet). this bluetooth device emulates the ELM327 bluetooth adapter

* Adapter address : the max address of built-in bluetooth device

If you do testing on command line terminal, there is an order to put AT commands as following :

ATZ - reset OBD-II adapter

ATSP6 - set protocol ISO 15765-4 CAN 11/500Kb (maybe use ATSP0 or ATTP6)

ATH1 - if you want to view the header 7E8 in the response and ATH0 if not

ATCAF1 - if you want the adapter to format data for you

ATCAF0 - you have to format the request data yourself. in this case remember to add PCI byte (equal to number of data bytes in the request) at the first place in the request

for example 02 01 0D : where 01 0D is request vehicle speed (2 data bytes) and PCI byte is 02

After init the OBD-II adapter with the above AT commands you can send what OBD-II request (or other AT commands) you want as usual

The free version "ECU Engine Simulation" is locked and does not respond to any OBD-II request, it only responds to initial AT commands.
